B0588_AGT-grips, thermoplastic with external thread |
go back |
|
Item description/product images |
|
|

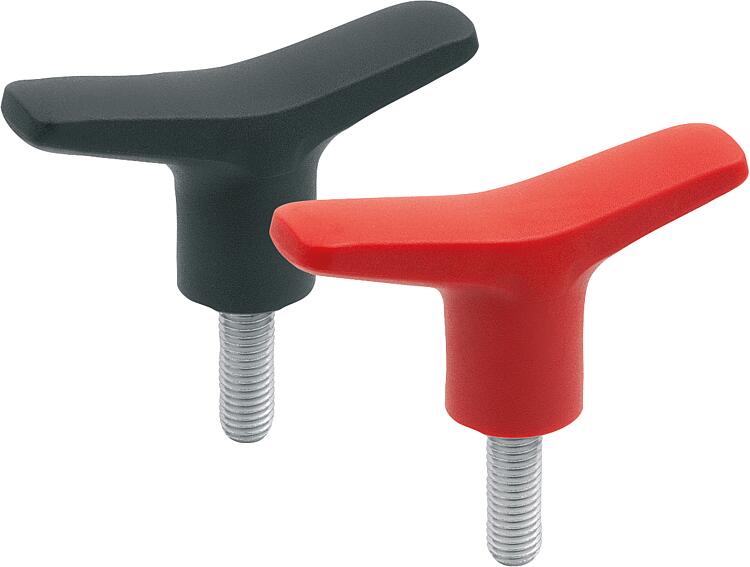

DescriptionMaterial:T-grip reinforced thermoplastic.
Bushes and threaded pins steel or stainless steel 1.4305. Version:Grip black grey RAL 7021 or red similar to RAL 3020.
Steel parts trivalent blue passivated.
Stainless steel bright.On request:Other screw sizes, screw lengths and colours.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | Component
material | Steel key | Main
colour | Surface finish
component | A | B | D | D3 | H | H1 | L | CAD | Acc. | Price | Order |
|---|
| B0588.5505X15 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 15 |  | | 1.22 € | | | B0588.5505X20 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 20 | | | 1.41 € | | | B0588.6506X20 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 20 | | | 1.60 € | | | B0588.6506X25 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 25 | | | 1.87 € | | | B0588.6506X30 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 30 | | | 1.93 € | | | B0588.6506X40 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 40 | | | 1.96 € | | | B0588.6508X20 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 20 | | | 1.60 € | | | B0588.6508X25 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 25 | | | 1.87 € | | | B0588.6508X30 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 30 | | | 1.93 € | | | B0588.6508X40 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 40 | | | 1.96 € | | | B0588.7508X20 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 20 | | | 1.72 € | | | B0588.7508X25 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 25 | | | 1.91 € | | | B0588.7508X30 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 30 | | | 2.18 € | | | B0588.7508X40 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 40 | | | 2.22 € | | | B0588.7510X20 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 20 | | | 1.96 € | | | B0588.7510X30 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 30 | | | 2.22 € | | | B0588.7510X40 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 40 | | | 2.27 € | | | B0588.7510X50 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 50 | | | 2.33 € | | | B0588.8510X30 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 30 | | | 3.78 € | | | B0588.8510X40 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 40 | | | 3.86 € | | | B0588.8510X50 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 50 | | | 3.92 € | | | B0588.8512X30 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 30 | | | 3.98 € | | | B0588.8512X40 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 40 | | | 4.16 € | | | B0588.8512X50 | L | steel | 1.0715 | black grey RAL 7021 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 50 | | | 4.46 € | | | B0588.05505X15 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 15 | | | 1.83 € | | | B0588.05505X20 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 20 | | | 2.12 € | | | B0588.06506X20 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 20 | | | 2.40 € | | | B0588.06506X25 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 25 | | | 2.81 € | | | B0588.06506X30 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 30 | | | 2.89 € | | | B0588.06506X40 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 40 | | | 2.94 € | | | B0588.06508X20 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 20 | | | 2.40 € | | | B0588.06508X25 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 25 | | | 2.81 € | | | B0588.06508X30 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 30 | | | 2.89 € | | | B0588.06508X40 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 40 | | | 2.94 € | | | B0588.07508X20 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 20 | | | 2.58 € | | | B0588.07508X25 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 25 | | | 2.86 € | | | B0588.07508X30 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 30 | | | 3.28 € | | | B0588.07508X40 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 40 | | | 3.34 € | | | B0588.07510X20 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 20 | | | 2.95 € | | | B0588.07510X30 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 30 | | | 3.34 € | | | B0588.07510X40 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 40 | | | 3.40 € | | | B0588.07510X50 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 50 | | | 3.50 € | | | B0588.08510X30 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 30 | | | 5.68 € | | | B0588.08510X40 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 40 | | | 5.80 € | | | B0588.08510X50 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 50 | | | 5.88 € | | | B0588.08512X30 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 30 | | | 5.95 € | | | B0588.08512X40 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 40 | | | 6.24 € | | | B0588.08512X50 | L | stainless steel | 1.4305 | black grey RAL 7021 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 50 | | | 6.68 € | | | B0588.65505X15 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 15 | | | 1.22 € | | | B0588.65505X20 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 20 | | | 1.41 € | | | B0588.66506X20 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 20 | | | 1.60 € | | | B0588.66506X25 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 25 | | | 1.87 € | | | B0588.66506X30 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 30 | | | 1.93 € | | | B0588.66506X40 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 40 | | | 1.96 € | | | B0588.66508X20 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 20 | | | 1.60 € | | | B0588.66508X25 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 25 | | | 1.87 € | | | B0588.66508X30 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 30 | | | 1.93 € | | | B0588.66508X40 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 40 | | | 1.96 € | | | B0588.67508X20 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 20 | | | 1.72 € | | | B0588.67508X25 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 25 | | | 1.91 € | | | B0588.67508X30 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 30 | | | 2.18 € | | | B0588.67508X40 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 40 | | | 2.22 € | | | B0588.67510X20 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 20 | | | 1.96 € | | | B0588.67510X30 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 30 | | | 2.22 € | | | B0588.67510X40 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 40 | | | 2.27 € | | | B0588.67510X50 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 50 | | | 2.33 € | | | B0588.68510X30 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 30 | | | 3.78 € | | | B0588.68510X40 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 40 | | | 3.86 € | | | B0588.68510X50 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 50 | | | 3.92 € | | | B0588.68512X30 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 30 | | | 3.98 € | | | B0588.68512X40 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 40 | | | 4.16 € | | | B0588.68512X50 | L | steel | 1.0715 | traffic red RAL 3020 | blue-passivated | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 50 | | | 4.46 € | | | B0588.065505X15 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 15 | | | 1.83 € | | | B0588.065505X20 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 55 | 12,6 | M5 | 16 | 33 | 21,3 | 20 | | | 2.12 € | | | B0588.066506X20 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 20 | | | 2.40 € | | | B0588.066506X25 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 25 | | | 2.81 € | | | B0588.066506X30 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 30 | | | 2.89 € | | | B0588.066506X40 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M6 | 18 | 37 | 22,9 | 40 | | | 2.94 € | | | B0588.066508X20 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 20 | | | 2.40 € | | | B0588.066508X25 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 25 | | | 2.81 € | | | B0588.066508X30 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 30 | | | 2.89 € | | | B0588.066508X40 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 65 | 14,6 | M8 | 18 | 37 | 22,9 | 40 | | | 2.94 € | | | B0588.067508X20 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 20 | | | 2.58 € | | | B0588.067508X25 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 25 | | | 2.86 € | | | B0588.067508X30 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 30 | | | 3.28 € | | | B0588.067508X40 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M8 | 22 | 41 | 25,2 | 40 | | | 3.34 € | | | B0588.067510X20 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 20 | | | 2.95 € | | | B0588.067510X30 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 30 | | | 3.34 € | | | B0588.067510X40 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 40 | | | 3.40 € | | | B0588.067510X50 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 75 | 18,4 | M10 | 22 | 41 | 25,2 | 50 | | | 3.50 € | | | B0588.068510X30 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 30 | | | 5.68 € | | | B0588.068510X40 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 40 | | | 5.80 € | | | B0588.068510X50 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M10 | 24 | 45 | 26,5 | 50 | | | 5.88 € | | | B0588.068512X30 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 30 | | | 5.95 € | | | B0588.068512X40 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 40 | | | 6.24 € | | | B0588.068512X50 | L | stainless steel | 1.4305 | traffic red RAL 3020 | bright | 85 | 19,6 | M12 | 24 | 45 | 26,5 | 50 | | | 6.68 € | |
