B0311_APull handles, plastic, mounted from front or rear |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic PA (polyamide), glass-bead reinforced.
Screw and nut steel or stainless steel.Version:Black greyNote:This pull handle is characterised by its large size and pleasant haptics.

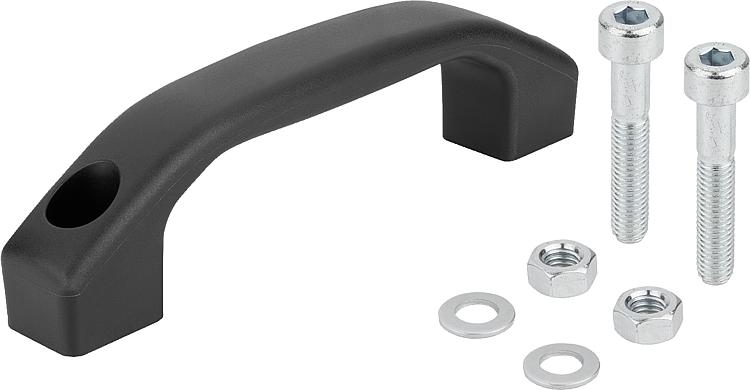

Form A is supplied with fastening screws, washers and nuts.

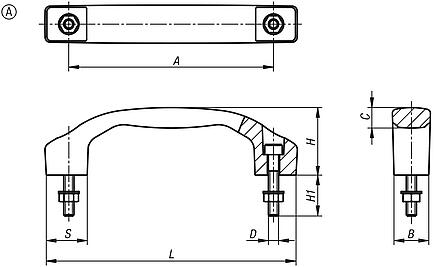

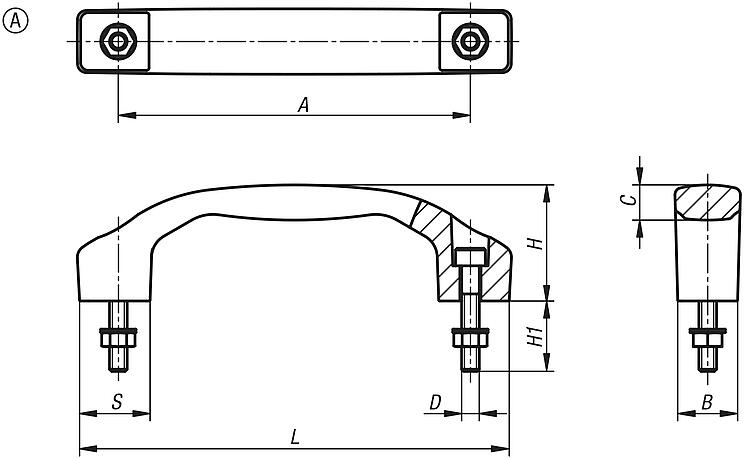

Screw-on dimension "A" applies after grip assembly. In the unassembled state it may deviate through flexural stress by deforming.
Assembly:Form A from the front.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
