B0065_BMounting brackets, Form B |
go back |
|
Item description/product images |
|
|

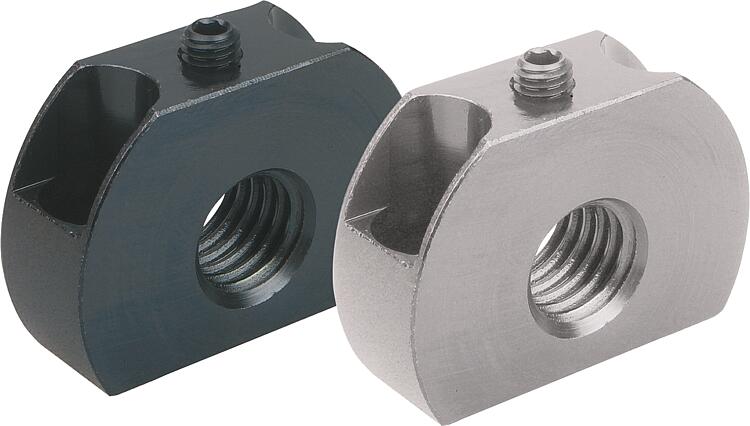

DescriptionMaterial:Steel or 1.4305 stainless steel. Version:Steel black oxidised.
Stainless steel bright.Note:These mounting brackets are assembly aids for cam-action indexing plungers and extend their application field. They can also be used with other indexing plungers or other elements that have a suitable thread. Fastened using cap screws.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | Main
material | D1 | D2 | D3 | D4 | K | L1 | L3 | S | CAD | Acc. | Price | Order |
|---|
| B0065.212 | B | steel | M12 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 |  | | 12.88 € | | | B0065.2121 | B | steel | M12x1,5 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 | | | 12.88 € | | | B0065.216 | B | steel | M16 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 13.54 € | | | B0065.2161 | B | steel | M16x1,5 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 13.54 € | | | B0065.220 | B | steel | M20 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 15.55 € | | | B0065.2201 | B | steel | M20x1,5 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 15.55 € | | | B0065.1212 | B | stainless steel | M12 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 | | | 18.59 € | | | B0065.12121 | B | stainless steel | M12x1,5 | 36 | 5,5 | 10 | 24 | 25 | 10 | 12 | | | 18.59 € | | | B0065.1216 | B | stainless steel | M16 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 22.09 € | | | B0065.12161 | B | stainless steel | M16x1,5 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 22.09 € | | | B0065.1220 | B | stainless steel | M20 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 23.05 € | | | B0065.12201 | B | stainless steel | M20x1,5 | 46 | 5,5 | 10 | 32 | 33 | 13 | 15 | | | 23.05 € | |
