B0372Stellfüße Stahl oder Edelstahl |
zurück |
|
|
BeschreibungWerkstoff:Fußteller, Gewindespindel Stahl oder Edelstahl 1.4301.
Gummiauflage (NBR) 80 Shore.Ausführung:Fußteller und Gewindespindel Stahl, verzinkt.
Fußteller Edelstahl, poliert.
Gewindespindel Edelstahl, blank.
Gummiauflage aufvulkanisiert, schwarz.
Hinweis:Stellfüße aus Stahl oder Edelstahl mit drehbar gelagerter Gewindespindel und Gummi-Aufstellfläche. Die massive Gummiauflage ist durch Aufvulkanisieren fest mit dem Blechteller verbunden. Die Gummiauflage hat eine ausgezeichnete Bodenhaftung. Sie wirkt körperschalldämmend und erschwert die Übertragung von Schwingungen und Stößen auf den Boden.
Die in der Tabelle angegebenen Belastungswerte beruhen auf einer Versuchsreihe, bei der eine statische Last senkrecht zum Teller in der Mitte der Spindel aufgebracht wurde. Radial einwirkende Kräfte, wie sie bei Vibrationen oder anderen Rütteleffekten entstehen, beeinflussen die Belastbarkeit und sind bei den angegebenen Werten nicht berücksichtigt.
Bei Edelstahlfüßen ist ab der Spindelgröße M16 die Schlüsselweite als Zweikant ausgeführt.
Auslieferung mit passender Mutter.Besonderheiten: DownloadHier gibt es die Informationen gesammelt als PDF:
Suchen Sie CAD Daten? Diese finden Sie direkt in der Produkttabelle.
|

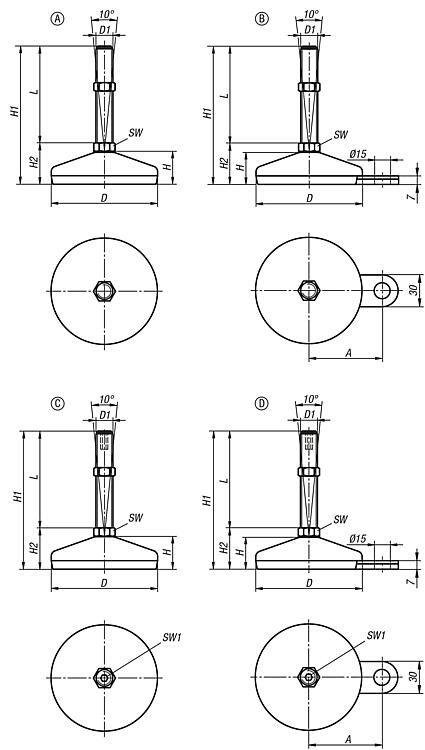

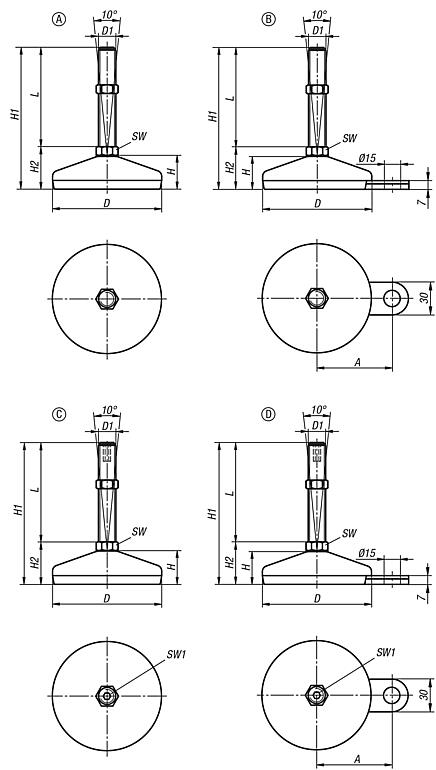

Zeichnungen (Gesamtübersicht) |

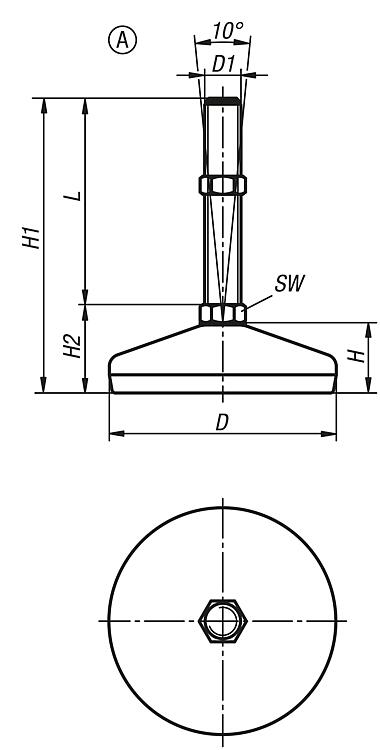

Stellfüße Stahl oder Edelstahl
Form A |
mehr Info |
| Bestellnummer | Form | Material
Grundkörper | D | D1 | H | H1 | H2 | SW | L | Belastbarkeit
max. kN (nur bei
statischer Belastung) | CAD | Zub. | Preis | Bestellen |
|---|
| B0372.1105010X50 | A | Stahl | 50 | M10 | 19 | 79 | 29 | 14 | 50 | 4 |  | | 7,40 € | | | B0372.1105010X100 | A | Stahl | 50 | M10 | 19 | 129 | 29 | 14 | 100 | 4 | | | 7,92 € | | | B0372.1105012X50 | A | Stahl | 50 | M12 | 19 | 79 | 29 | 14 | 50 | 4 | | | 7,40 € | | | B0372.1105012X100 | A | Stahl | 50 | M12 | 19 | 129 | 29 | 14 | 100 | 4 | | | 7,92 € | | | B0372.1105012X150 | A | Stahl | 50 | M12 | 19 | 179 | 29 | 14 | 150 | 4 | | | 8,56 € | | | B0372.1106010X50 | A | Stahl | 60 | M10 | 22 | 82 | 32 | 14 | 50 | 7 | | | 8,58 € | | | B0372.1106010X100 | A | Stahl | 60 | M10 | 22 | 132 | 32 | 14 | 100 | 7 | | | 9,46 € | | | B0372.1106012X50 | A | Stahl | 60 | M12 | 22 | 82 | 32 | 14 | 50 | 7 | | | 8,58 € | | | B0372.1106012X100 | A | Stahl | 60 | M12 | 22 | 132 | 32 | 14 | 100 | 7 | | | 9,46 € | | | B0372.1106012X150 | A | Stahl | 60 | M12 | 22 | 182 | 32 | 14 | 150 | 7 | | | 10,04 € | | | B0372.1108010X50 | A | Stahl | 80 | M10 | 25 | 85 | 35 | 14 | 50 | 10 | | | 9,76 € | | | B0372.1108010X100 | A | Stahl | 80 | M10 | 25 | 135 | 35 | 14 | 100 | 10 | | | 10,23 € | | | B0372.1108012X50 | A | Stahl | 80 | M12 | 25 | 85 | 35 | 14 | 50 | 10 | | | 9,81 € | | | B0372.1108012X100 | A | Stahl | 80 | M12 | 25 | 135 | 35 | 14 | 100 | 10 | | | 10,28 € | | | B0372.1108012X150 | A | Stahl | 80 | M12 | 25 | 185 | 35 | 14 | 150 | 10 | | | 11,69 € | | | B0372.1108014X50 | A | Stahl | 80 | M14 | 25 | 85 | 35 | 14 | 50 | 10 | | | 10,09 € | | | B0372.1108014X100 | A | Stahl | 80 | M14 | 25 | 135 | 35 | 14 | 100 | 10 | | | 10,58 € | | | B0372.1108014X150 | A | Stahl | 80 | M14 | 25 | 185 | 35 | 14 | 150 | 10 | | | 11,72 € | | | B0372.1108016X100 | A | Stahl | 80 | M16 | 25 | 135 | 35 | 16 | 100 | 10 | | | 11,66 € | | | B0372.1108016X150 | A | Stahl | 80 | M16 | 25 | 185 | 35 | 16 | 150 | 10 | | | 12,93 € | | | B0372.1108020X75 | A | Stahl | 80 | M20 | 25 | 111 | 36 | 20 | 75 | 10 | | | 12,13 € | | | B0372.1108020X100 | A | Stahl | 80 | M20 | 25 | 136 | 36 | 20 | 100 | 10 | | | 12,36 € | | | B0372.1108020X150 | A | Stahl | 80 | M20 | 25 | 186 | 36 | 20 | 150 | 10 | | | 13,86 € | | | B0372.1108020X200 | A | Stahl | 80 | M20 | 25 | 236 | 36 | 20 | 200 | 10 | | | 15,63 € | | | B0372.1110020X75 | A | Stahl | 100 | M20 | 28 | 113,5 | 38,5 | 20 | 75 | 15 | | | 14,12 € | | | B0372.1110020X100 | A | Stahl | 100 | M20 | 28 | 138,5 | 38,5 | 20 | 100 | 15 | | | 14,37 € | | | B0372.1110020X150 | A | Stahl | 100 | M20 | 28 | 188,5 | 38,5 | 20 | 150 | 15 | | | 15,88 € | | | B0372.1110020X200 | A | Stahl | 100 | M20 | 28 | 238,5 | 38,5 | 20 | 200 | 15 | | | 17,43 € | | | B0372.1110020X250 | A | Stahl | 100 | M20 | 28 | 288,5 | 38,5 | 20 | 250 | 15 | | | 19,23 € | | | B0372.1110024X100 | A | Stahl | 100 | M24 | 28 | 138,5 | 38,5 | 24 | 100 | 15 | | | 17,46 € | | | B0372.1110024X150 | A | Stahl | 100 | M24 | 28 | 188,5 | 38,5 | 24 | 150 | 15 | | | 19,11 € | | | B0372.1110024X200 | A | Stahl | 100 | M24 | 28 | 238,5 | 38,5 | 24 | 200 | 15 | | | 20,82 € | | | B0372.1110024X250 | A | Stahl | 100 | M24 | 28 | 288,5 | 38,5 | 24 | 250 | 15 | | | 22,68 € | | | B0372.1112020X100 | A | Stahl | 120 | M20 | 32 | 142,5 | 42,5 | 20 | 100 | 30 | | | 20,23 € | | | B0372.1112020X150 | A | Stahl | 120 | M20 | 32 | 192,5 | 42,5 | 20 | 150 | 30 | | | 21,20 € | | | B0372.1112020X200 | A | Stahl | 120 | M20 | 32 | 242,5 | 42,5 | 20 | 200 | 30 | | | 22,53 € | | | B0372.1112024X100 | A | Stahl | 120 | M24 | 32 | 142,5 | 42,5 | 24 | 100 | 30 | | | 21,93 € | | | B0372.1112024X150 | A | Stahl | 120 | M24 | 32 | 192,5 | 42,5 | 24 | 150 | 30 | | | 23,69 € | | | B0372.1112024X200 | A | Stahl | 120 | M24 | 32 | 242,5 | 42,5 | 24 | 200 | 30 | | | 25,59 € | | | B0372.1112030X100 | A | Stahl | 120 | M30 | 32 | 143,5 | 43,5 | 30 | 100 | 30 | | | 25,04 € | | | B0372.1112030X150 | A | Stahl | 120 | M30 | 32 | 193,5 | 43,5 | 30 | 150 | 30 | | | 26,10 € | | | B0372.1112030X200 | A | Stahl | 120 | M30 | 32 | 243,5 | 43,5 | 30 | 200 | 30 | | | 29,72 € | | | B0372.1205010X50 | A | Edelstahl | 50 | M10 | 19 | 79 | 29 | 14 | 50 | 4 | | | 8,53 € | | | B0372.1205010X100 | A | Edelstahl | 50 | M10 | 19 | 129 | 29 | 14 | 100 | 4 | | | 9,61 € | | | B0372.1205012X50 | A | Edelstahl | 50 | M12 | 19 | 79 | 29 | 14 | 50 | 4 | | | 8,53 € | | | B0372.1205012X100 | A | Edelstahl | 50 | M12 | 19 | 129 | 29 | 14 | 100 | 4 | | | 9,61 € | | | B0372.1205012X150 | A | Edelstahl | 50 | M12 | 19 | 179 | 29 | 14 | 150 | 4 | | | 10,90 € | | | B0372.1206010X50 | A | Edelstahl | 60 | M10 | 22 | 82 | 32 | 14 | 50 | 7 | | | 11,71 € | | | B0372.1206010X100 | A | Edelstahl | 60 | M10 | 22 | 132 | 32 | 14 | 100 | 7 | | | 12,81 € | | | B0372.1206012X50 | A | Edelstahl | 60 | M12 | 22 | 82 | 32 | 14 | 50 | 7 | | | 11,71 € | | | B0372.1206012X100 | A | Edelstahl | 60 | M12 | 22 | 132 | 32 | 14 | 100 | 7 | | | 12,81 € | | | B0372.1206012X150 | A | Edelstahl | 60 | M12 | 22 | 182 | 32 | 14 | 150 | 7 | | | 13,97 € | | | B0372.1208010X50 | A | Edelstahl | 80 | M10 | 25 | 85 | 35 | 14 | 50 | 10 | | | 13,92 € | | | B0372.1208010X75 | A | Edelstahl | 80 | M10 | 25 | 110 | 35 | 14 | 75 | 10 | | | 14,45 € | | | B0372.1208010X100 | A | Edelstahl | 80 | M10 | 25 | 135 | 35 | 14 | 100 | 10 | | | 14,99 € | | | B0372.1208010X125 | A | Edelstahl | 80 | M10 | 25 | 160 | 35 | 14 | 125 | 10 | | | 15,52 € | | | B0372.1208012X50 | A | Edelstahl | 80 | M12 | 25 | 85 | 35 | 14 | 50 | 10 | | | 13,99 € | | | B0372.1208012X75 | A | Edelstahl | 80 | M12 | 25 | 110 | 35 | 14 | 75 | 10 | | | 14,52 € | | | B0372.1208012X100 | A | Edelstahl | 80 | M12 | 25 | 135 | 35 | 14 | 100 | 10 | | | 15,04 € | | | B0372.1208012X125 | A | Edelstahl | 80 | M12 | 25 | 160 | 35 | 14 | 125 | 10 | | | 15,59 € | | | B0372.1208012X150 | A | Edelstahl | 80 | M12 | 25 | 185 | 35 | 14 | 150 | 10 | | | 16,58 € | | | B0372.1208014X75 | A | Edelstahl | 80 | M14 | 25 | 110 | 35 | 14 | 75 | 10 | | | 14,91 € | | | B0372.1208014X100 | A | Edelstahl | 80 | M14 | 25 | 135 | 35 | 14 | 100 | 10 | | | 15,45 € | | | B0372.1208014X125 | A | Edelstahl | 80 | M14 | 25 | 160 | 35 | 14 | 125 | 10 | | | 16,01 € | | | B0372.1208014X150 | A | Edelstahl | 80 | M14 | 25 | 185 | 35 | 14 | 150 | 10 | | | 16,58 € | | | B0372.1208014X175 | A | Edelstahl | 80 | M14 | 25 | 210 | 35 | 14 | 175 | 10 | | | 17,14 € | | | B0372.1208016X75 | A | Edelstahl | 80 | M16 | 25 | 110 | 35 | 13 | 75 | 10 | | | 16,14 € | | | B0372.1208016X100 | A | Edelstahl | 80 | M16 | 25 | 135 | 35 | 13 | 100 | 10 | | | 16,96 € | | | B0372.1208016X125 | A | Edelstahl | 80 | M16 | 25 | 160 | 35 | 13 | 125 | 10 | | | 17,51 € | | | B0372.1208016X150 | A | Edelstahl | 80 | M16 | 25 | 185 | 35 | 13 | 150 | 10 | | | 18,11 € | | | B0372.1208016X175 | A | Edelstahl | 80 | M16 | 25 | 210 | 35 | 13 | 175 | 10 | | | 18,94 € | | | B0372.1208020X75 | A | Edelstahl | 80 | M20 | 25 | 113 | 38 | 17 | 75 | 10 | | | 18,06 € | | | B0372.1208020X100 | A | Edelstahl | 80 | M20 | 25 | 138 | 38 | 17 | 100 | 10 | | | 19,48 € | | | B0372.1208020X125 | A | Edelstahl | 80 | M20 | 25 | 163 | 38 | 17 | 125 | 10 | | | 20,16 € | | | B0372.1208020X150 | A | Edelstahl | 80 | M20 | 25 | 188 | 38 | 17 | 150 | 10 | | | 20,88 € | | | B0372.1208020X175 | A | Edelstahl | 80 | M20 | 25 | 213 | 38 | 17 | 175 | 10 | | | 22,26 € | | | B0372.1208020X200 | A | Edelstahl | 80 | M20 | 25 | 238 | 38 | 17 | 200 | 10 | | | 22,96 € | | | B0372.1208020X225 | A | Edelstahl | 80 | M20 | 25 | 263 | 38 | 17 | 225 | 10 | | | 23,68 € | | | B0372.1210020X75 | A | Edelstahl | 100 | M20 | 30 | 118 | 43 | 17 | 75 | 15 | | | 25,36 € | | | B0372.1210020X100 | A | Edelstahl | 100 | M20 | 30 | 143 | 43 | 17 | 100 | 15 | | | 26,48 € | | | B0372.1210020X125 | A | Edelstahl | 100 | M20 | 30 | 168 | 43 | 17 | 125 | 15 | | | 27,32 € | | | B0372.1210020X150 | A | Edelstahl | 100 | M20 | 30 | 193 | 43 | 17 | 150 | 15 | | | 28,15 € | | | B0372.1210020X175 | A | Edelstahl | 100 | M20 | 30 | 218 | 43 | 17 | 175 | 15 | | | 29,27 € | | | B0372.1210020X200 | A | Edelstahl | 100 | M20 | 30 | 243 | 43 | 17 | 200 | 15 | | | 30,12 € | | | B0372.1210024X100 | A | Edelstahl | 100 | M24 | 30 | 144 | 44 | 20 | 100 | 15 | | | 30,00 € | | | B0372.1210024X125 | A | Edelstahl | 100 | M24 | 30 | 169 | 44 | 20 | 125 | 15 | | | 30,43 € | | | B0372.1210024X150 | A | Edelstahl | 100 | M24 | 30 | 194 | 44 | 20 | 150 | 15 | | | 30,87 € | | | B0372.1210024X175 | A | Edelstahl | 100 | M24 | 30 | 219 | 44 | 20 | 175 | 15 | | | 34,21 € | | | B0372.1210024X200 | A | Edelstahl | 100 | M24 | 30 | 244 | 44 | 20 | 200 | 15 | | | 35,06 € | | | B0372.1212020X100 | A | Edelstahl | 120 | M20 | 32 | 143 | 43 | 17 | 100 | 30 | | | 40,29 € | | | B0372.1212020X150 | A | Edelstahl | 120 | M20 | 32 | 192 | 42 | 17 | 150 | 30 | | | 42,11 € | | | B0372.1212020X200 | A | Edelstahl | 120 | M20 | 32 | 242 | 42 | 17 | 200 | 30 | | | 44,49 € | | | B0372.1212024X100 | A | Edelstahl | 120 | M24 | 32 | 144 | 44 | 20 | 100 | 30 | | | 44,10 € | | | B0372.1212024X150 | A | Edelstahl | 120 | M24 | 32 | 194 | 44 | 20 | 150 | 30 | | | 47,38 € | | | B0372.1212024X200 | A | Edelstahl | 120 | M24 | 32 | 244 | 44 | 20 | 200 | 30 | | | 50,09 € | | | B0372.1212030X100 | A | Edelstahl | 120 | M30 | 32 | 147 | 47 | 26 | 100 | 30 | | | 48,87 € | | | B0372.1212030X150 | A | Edelstahl | 120 | M30 | 32 | 196 | 46 | 26 | 150 | 30 | | | 54,06 € | | | B0372.1212030X200 | A | Edelstahl | 120 | M30 | 32 | 246 | 46 | 26 | 200 | 30 | | | 58,58 € | |
|

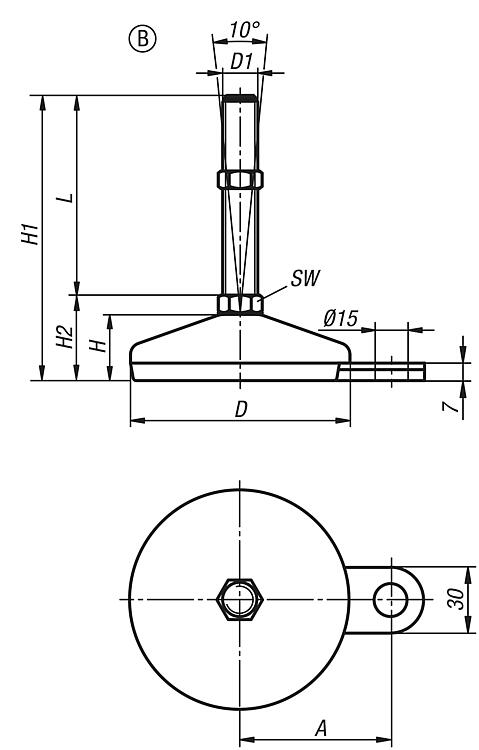

Stellfüße Stahl oder Edelstahl Form B |
mehr Info |
| Bestellnummer | Form | Material
Grundkörper | A | D | D1 | H | H1 | H2 | SW | L | Belastbarkeit
max. kN (nur bei
statischer Belastung) | CAD | Zub. | Preis | Bestellen |
|---|
| B0372.2106010X50 | B | Stahl | 45 | 60 | M10 | 22 | 82 | 32 | 14 | 50 | 7 | | | 9,96 € | | | B0372.2106010X100 | B | Stahl | 45 | 60 | M10 | 22 | 132 | 32 | 14 | 100 | 7 | | | 10,85 € | | | B0372.2106012X50 | B | Stahl | 45 | 60 | M12 | 22 | 82 | 32 | 14 | 50 | 7 | | | 9,96 € | | | B0372.2106012X100 | B | Stahl | 45 | 60 | M12 | 22 | 132 | 32 | 14 | 100 | 7 | | | 10,85 € | | | B0372.2106012X150 | B | Stahl | 45 | 60 | M12 | 22 | 182 | 32 | 14 | 150 | 7 | | | 11,75 € | | | B0372.2108010X50 | B | Stahl | 54 | 80 | M10 | 25 | 85 | 35 | 14 | 50 | 10 | | | 11,60 € | | | B0372.2108010X100 | B | Stahl | 54 | 80 | M10 | 25 | 135 | 35 | 14 | 100 | 10 | | | 11,87 € | | | B0372.2108012X50 | B | Stahl | 54 | 80 | M12 | 25 | 85 | 35 | 14 | 50 | 10 | | | 11,63 € | | | B0372.2108012X100 | B | Stahl | 54 | 80 | M12 | 25 | 135 | 35 | 14 | 100 | 10 | | | 11,89 € | | | B0372.2108012X150 | B | Stahl | 54 | 80 | M12 | 25 | 185 | 35 | 14 | 150 | 10 | | | 12,98 € | | | B0372.2108014X50 | B | Stahl | 54 | 80 | M14 | 25 | 85 | 35 | 14 | 50 | 10 | | | 11,96 € | | | B0372.2108014X100 | B | Stahl | 54 | 80 | M14 | 25 | 135 | 35 | 14 | 100 | 10 | | | 12,23 € | | | B0372.2108014X150 | B | Stahl | 54 | 80 | M14 | 25 | 185 | 35 | 14 | 150 | 10 | | | 13,01 € | | | B0372.2108016X100 | B | Stahl | 54 | 80 | M16 | 25 | 135 | 35 | 16 | 100 | 10 | | | 12,99 € | | | B0372.2108016X150 | B | Stahl | 54 | 80 | M16 | 25 | 185 | 35 | 16 | 150 | 10 | | | 14,17 € | | | B0372.2108020X75 | B | Stahl | 54 | 80 | M20 | 25 | 111 | 36 | 20 | 75 | 10 | | | 13,65 € | | | B0372.2108020X100 | B | Stahl | 54 | 80 | M20 | 25 | 136 | 36 | 20 | 100 | 10 | | | 14,44 € | | | B0372.2108020X150 | B | Stahl | 54 | 80 | M20 | 25 | 186 | 36 | 20 | 150 | 10 | | | 15,37 € | | | B0372.2108020X200 | B | Stahl | 54 | 80 | M20 | 25 | 236 | 36 | 20 | 200 | 10 | | | 16,32 € | | | B0372.2110020X75 | B | Stahl | 69 | 100 | M20 | 28 | 113,5 | 38,5 | 20 | 75 | 15 | | | 16,95 € | | | B0372.2110020X100 | B | Stahl | 69 | 100 | M20 | 28 | 138,5 | 38,5 | 20 | 100 | 15 | | | 17,60 € | | | B0372.2110020X150 | B | Stahl | 69 | 100 | M20 | 28 | 188,5 | 38,5 | 20 | 150 | 15 | | | 19,24 € | | | B0372.2110020X200 | B | Stahl | 69 | 100 | M20 | 28 | 238,5 | 38,5 | 20 | 200 | 15 | | | 20,58 € | | | B0372.2110020X250 | B | Stahl | 69 | 100 | M20 | 28 | 288,5 | 38,5 | 20 | 250 | 15 | | | 22,31 € | | | B0372.2110024X100 | B | Stahl | 69 | 100 | M24 | 28 | 138,5 | 38,5 | 24 | 100 | 15 | | | 19,82 € | | | B0372.2110024X150 | B | Stahl | 69 | 100 | M24 | 28 | 188,5 | 38,5 | 24 | 150 | 15 | | | 21,29 € | | | B0372.2110024X200 | B | Stahl | 69 | 100 | M24 | 28 | 238,5 | 38,5 | 24 | 200 | 15 | | | 22,50 € | | | B0372.2110024X250 | B | Stahl | 69 | 100 | M24 | 28 | 288,5 | 38,5 | 24 | 250 | 15 | | | 24,38 € | | | B0372.2206010X50 | B | Edelstahl | 45 | 60 | M10 | 22 | 82 | 32 | 14 | 50 | 7 | | | 12,80 € | | | B0372.2206010X100 | B | Edelstahl | 45 | 60 | M10 | 22 | 132 | 32 | 14 | 100 | 7 | | | 13,84 € | | | B0372.2206012X50 | B | Edelstahl | 45 | 60 | M12 | 22 | 82 | 32 | 14 | 50 | 7 | | | 12,80 € | | | B0372.2206012X100 | B | Edelstahl | 45 | 60 | M12 | 22 | 132 | 32 | 14 | 100 | 7 | | | 13,84 € | | | B0372.2206012X150 | B | Edelstahl | 45 | 60 | M12 | 22 | 182 | 32 | 14 | 150 | 7 | | | 14,96 € | | | B0372.2208010X50 | B | Edelstahl | 54 | 80 | M10 | 25 | 85 | 35 | 14 | 50 | 10 | | | 17,05 € | | | B0372.2208010X75 | B | Edelstahl | 54 | 80 | M10 | 25 | 110 | 35 | 14 | 75 | 10 | | | 17,61 € | | | B0372.2208010X100 | B | Edelstahl | 54 | 80 | M10 | 25 | 135 | 35 | 14 | 100 | 10 | | | 18,14 € | | | B0372.2208010X125 | B | Edelstahl | 54 | 80 | M10 | 25 | 160 | 35 | 14 | 125 | 10 | | | 18,69 € | | | B0372.2208012X50 | B | Edelstahl | 54 | 80 | M12 | 25 | 85 | 35 | 14 | 50 | 10 | | | 17,14 € | | | B0372.2208012X75 | B | Edelstahl | 54 | 80 | M12 | 25 | 110 | 35 | 14 | 75 | 10 | | | 17,67 € | | | B0372.2208012X100 | B | Edelstahl | 54 | 80 | M12 | 25 | 135 | 35 | 14 | 100 | 10 | | | 18,23 € | | | B0372.2208012X125 | B | Edelstahl | 54 | 80 | M12 | 25 | 160 | 35 | 14 | 125 | 10 | | | 18,76 € | | | B0372.2208012X150 | B | Edelstahl | 54 | 80 | M12 | 25 | 185 | 35 | 14 | 150 | 10 | | | 19,29 € | | | B0372.2208014X75 | B | Edelstahl | 54 | 80 | M14 | 25 | 110 | 35 | 14 | 75 | 10 | | | 17,67 € | | | B0372.2208014X100 | B | Edelstahl | 54 | 80 | M14 | 25 | 135 | 35 | 14 | 100 | 10 | | | 18,23 € | | | B0372.2208014X125 | B | Edelstahl | 54 | 80 | M14 | 25 | 160 | 35 | 14 | 125 | 10 | | | 18,76 € | | | B0372.2208014X150 | B | Edelstahl | 54 | 80 | M14 | 25 | 185 | 35 | 14 | 150 | 10 | | | 19,30 € | | | B0372.2208014X175 | B | Edelstahl | 54 | 80 | M14 | 25 | 210 | 35 | 14 | 175 | 10 | | | 19,84 € | | | B0372.2208016X75 | B | Edelstahl | 54 | 80 | M16 | 25 | 110 | 35 | 13 | 75 | 10 | | | 18,60 € | | | B0372.2208016X100 | B | Edelstahl | 54 | 80 | M16 | 25 | 135 | 35 | 13 | 100 | 10 | | | 19,38 € | | | B0372.2208016X125 | B | Edelstahl | 54 | 80 | M16 | 25 | 160 | 35 | 13 | 125 | 10 | | | 19,67 € | | | B0372.2208016X150 | B | Edelstahl | 54 | 80 | M16 | 25 | 185 | 35 | 13 | 150 | 10 | | | 20,48 € | | | B0372.2208016X175 | B | Edelstahl | 54 | 80 | M16 | 25 | 210 | 35 | 13 | 175 | 10 | | | 21,00 € | | | B0372.2208020X75 | B | Edelstahl | 54 | 80 | M20 | 25 | 113 | 38 | 17 | 75 | 10 | | | 20,60 € | | | B0372.2208020X100 | B | Edelstahl | 54 | 80 | M20 | 25 | 138 | 38 | 17 | 100 | 10 | | | 21,81 € | | | B0372.2208020X125 | B | Edelstahl | 54 | 80 | M20 | 25 | 163 | 38 | 17 | 125 | 10 | | | 22,61 € | | | B0372.2208020X150 | B | Edelstahl | 54 | 80 | M20 | 25 | 188 | 38 | 17 | 150 | 10 | | | 23,85 € | | | B0372.2208020X175 | B | Edelstahl | 54 | 80 | M20 | 25 | 213 | 38 | 17 | 175 | 10 | | | 24,81 € | | | B0372.2208020X200 | B | Edelstahl | 54 | 80 | M20 | 25 | 238 | 38 | 17 | 200 | 10 | | | 25,50 € | | | B0372.2208020X225 | B | Edelstahl | 54 | 80 | M20 | 25 | 263 | 38 | 17 | 225 | 10 | | | 26,20 € | | | B0372.2210020X75 | B | Edelstahl | 69 | 100 | M20 | 30 | 118 | 43 | 17 | 75 | 15 | | | 26,59 € | | | B0372.2210020X100 | B | Edelstahl | 69 | 100 | M20 | 30 | 143 | 43 | 17 | 100 | 15 | | | 27,35 € | | | B0372.2210020X125 | B | Edelstahl | 69 | 100 | M20 | 30 | 168 | 43 | 17 | 125 | 15 | | | 29,26 € | | | B0372.2210020X150 | B | Edelstahl | 69 | 100 | M20 | 30 | 193 | 43 | 17 | 150 | 15 | | | 30,30 € | | | B0372.2210020X175 | B | Edelstahl | 69 | 100 | M20 | 30 | 218 | 43 | 17 | 175 | 15 | | | 31,29 € | | | B0372.2210020X200 | B | Edelstahl | 69 | 100 | M20 | 30 | 243 | 43 | 17 | 200 | 15 | | | 32,48 € | | | B0372.2210024X100 | B | Edelstahl | 69 | 100 | M24 | 30 | 144 | 44 | 20 | 100 | 15 | | | 31,93 € | | | B0372.2210024X125 | B | Edelstahl | 69 | 100 | M24 | 30 | 169 | 44 | 20 | 125 | 15 | | | 32,83 € | | | B0372.2210024X150 | B | Edelstahl | 69 | 100 | M24 | 30 | 194 | 44 | 20 | 150 | 15 | | | 33,24 € | | | B0372.2210024X175 | B | Edelstahl | 69 | 100 | M24 | 30 | 219 | 44 | 20 | 175 | 15 | | | 36,47 € | | | B0372.2210024X200 | B | Edelstahl | 69 | 100 | M24 | 30 | 244 | 44 | 20 | 200 | 15 | | | 37,32 € | |
|

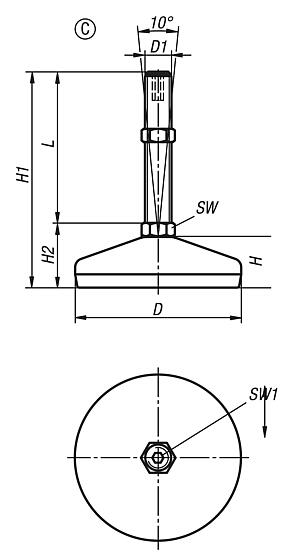

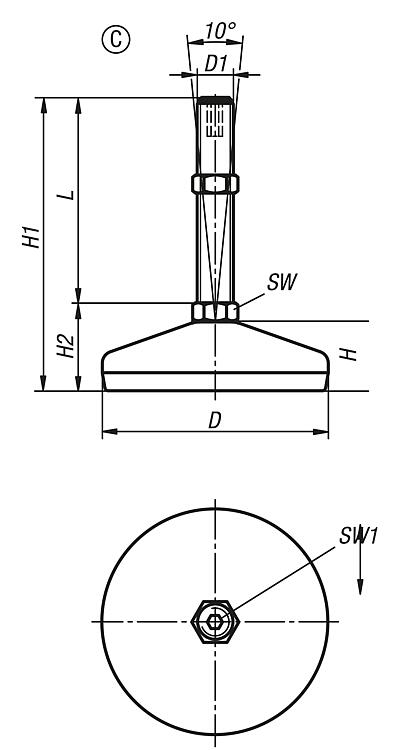

Stellfüße Stahl oder Edelstahl Form C |
mehr Info |
| Bestellnummer | Form | Material
Grundkörper | D
| D1 | H | H1 | H2 | SW | SW1 | L | Belastbarkeit
max. kN (nur bei
statischer Belastung) | CAD | Zub. | Preis | Bestellen |
|---|
| B0372.3105010X50 | C | Stahl | 50 | M10 | 19 | 79 | 29 | 14 | 5 | 50 | 4 | | | 9,69 € | | | B0372.3105012X50 | C | Stahl | 50 | M12 | 19 | 79 | 29 | 14 | 6 | 50 | 4 | | | 9,69 € | | | B0372.3105012X100 | C | Stahl | 50 | M12 | 19 | 129 | 29 | 14 | 6 | 100 | 4 | | | 10,21 € | | | B0372.3105016X75 | C | Stahl | 50 | M16 | 19 | 104 | 29 | 16 | 8 | 75 | 4 | | | 11,31 € | | | B0372.3105016X100 | C | Stahl | 50 | M16 | 19 | 129 | 29 | 16 | 8 | 100 | 4 | | | 11,57 € | | | B0372.3105016X150 | C | Stahl | 50 | M16 | 19 | 179 | 29 | 16 | 8 | 150 | 4 | | | 13,04 € | | | B0372.3106010X50 | C | Stahl | 60 | M10 | 22 | 82 | 32 | 14 | 5 | 50 | 7 | | | 10,88 € | | | B0372.3106012X50 | C | Stahl | 60 | M12 | 22 | 82 | 32 | 14 | 6 | 50 | 7 | | | 10,88 € | | | B0372.3106012X100 | C | Stahl | 60 | M12 | 22 | 132 | 32 | 14 | 6 | 100 | 7 | | | 11,76 € | | | B0372.3106016X75 | C | Stahl | 60 | M16 | 22 | 108 | 33 | 16 | 8 | 75 | 7 | | | 12,75 € | | | B0372.3106016X100 | C | Stahl | 60 | M16 | 22 | 133 | 33 | 16 | 8 | 100 | 7 | | | 12,99 € | | | B0372.3106016X150 | C | Stahl | 60 | M16 | 22 | 183 | 33 | 16 | 8 | 150 | 7 | | | 14,31 € | | | B0372.3108016X100 | C | Stahl | 80 | M16 | 25 | 135 | 35 | 16 | 8 | 100 | 10 | | | 13,19 € | | | B0372.3108016X150 | C | Stahl | 80 | M16 | 25 | 185 | 35 | 16 | 8 | 150 | 10 | | | 14,37 € | | | B0372.3108020X75 | C | Stahl | 80 | M20 | 25 | 111 | 36 | 20 | 10 | 75 | 10 | | | 13,64 € | | | B0372.3110020X100 | C | Stahl | 100 | M20 | 28 | 138,5 | 38,5 | 20 | 10 | 100 | 15 | | | 15,43 € | | | B0372.3110020X150 | C | Stahl | 100 | M20 | 28 | 188,5 | 38,5 | 20 | 10 | 150 | 15 | | | 16,84 € | | | B0372.3110024X200 | C | Stahl | 100 | M24 | 28 | 238,5 | 38,5 | 24 | 10 | 200 | 15 | | | 21,35 € | | | B0372.3112020X100 | C | Stahl | 120 | M20 | 32 | 142,5 | 42,5 | 20 | 10 | 100 | 30 | | | 23,14 € | | | B0372.3112020X150 | C | Stahl | 120 | M20 | 32 | 192,5 | 42,5 | 20 | 10 | 150 | 30 | | | 24,09 € | | | B0372.3112020X200 | C | Stahl | 120 | M20 | 32 | 242,5 | 42,5 | 20 | 10 | 200 | 30 | | | 25,44 € | | | B0372.3112024X100 | C | Stahl | 120 | M24 | 32 | 142,5 | 42,5 | 24 | 10 | 100 | 30 | | | 24,84 € | | | B0372.3112024X150 | C | Stahl | 120 | M24 | 32 | 192,5 | 42,5 | 24 | 10 | 150 | 30 | | | 26,59 € | | | B0372.3112024X200 | C | Stahl | 120 | M24 | 32 | 242,5 | 42,5 | 24 | 10 | 200 | 30 | | | 28,50 € | | | B0372.3112030X100 | C | Stahl | 120 | M30 | 32 | 143,5 | 43,5 | 30 | 10 | 100 | 30 | | | 27,93 € | | | B0372.3112030X150 | C | Stahl | 120 | M30 | 32 | 193,5 | 43,5 | 30 | 10 | 150 | 30 | | | 29,03 € | | | B0372.3112030X200 | C | Stahl | 120 | M30 | 32 | 243,5 | 43,5 | 30 | 10 | 200 | 30 | | | 32,63 € | | | B0372.3205010X50 | C | Edelstahl | 50 | M10 | 19 | 79 | 29 | 14 | 5 | 50 | 4 | | | 11,44 € | | | B0372.3205012X50 | C | Edelstahl | 50 | M12 | 19 | 79 | 29 | 14 | 6 | 50 | 4 | | | 11,44 € | | | B0372.3205012X100 | C | Edelstahl | 50 | M12 | 19 | 129 | 29 | 14 | 6 | 100 | 4 | | | 12,51 € | | | B0372.3205016X75 | C | Edelstahl | 50 | M16 | 19 | 104 | 29 | 13 | 8 | 75 | 4 | | | 13,50 € | | | B0372.3205016X100 | C | Edelstahl | 50 | M16 | 19 | 129 | 29 | 13 | 8 | 100 | 4 | | | 13,93 € | | | B0372.3205016X150 | C | Edelstahl | 50 | M16 | 19 | 179 | 29 | 13 | 8 | 150 | 4 | | | 15,00 € | | | B0372.3205016X200 | C | Edelstahl | 50 | M16 | 19 | 229 | 29 | 13 | 8 | 200 | 4 | | | 16,23 € | | | B0372.3206010X50 | C | Edelstahl | 60 | M10 | 22 | 82 | 32 | 14 | 5 | 50 | 7 | | | 14,62 € | | | B0372.3206012X50 | C | Edelstahl | 60 | M12 | 22 | 82 | 32 | 14 | 6 | 50 | 7 | | | 14,62 € | | | B0372.3206012X100 | C | Edelstahl | 60 | M12 | 22 | 132 | 32 | 14 | 6 | 100 | 7 | | | 15,73 € | | | B0372.3206016X75 | C | Edelstahl | 60 | M16 | 22 | 108 | 33 | 13 | 8 | 75 | 7 | | | 14,77 € | | | B0372.3206016X100 | C | Edelstahl | 60 | M16 | 22 | 133 | 33 | 13 | 8 | 100 | 7 | | | 15,27 € | | | B0372.3206016X150 | C | Edelstahl | 60 | M16 | 22 | 183 | 33 | 13 | 8 | 150 | 7 | | | 16,21 € | | | B0372.3206016X200 | C | Edelstahl | 60 | M16 | 22 | 233 | 33 | 13 | 8 | 200 | 7 | | | 17,35 € | | | B0372.3208016X75 | C | Edelstahl | 80 | M16 | 25 | 110 | 35 | 13 | 8 | 75 | 10 | | | 24,35 € | | | B0372.3208016X100 | C | Edelstahl | 80 | M16 | 25 | 135 | 35 | 13 | 8 | 100 | 10 | | | 25,37 € | | | B0372.3208016X125 | C | Edelstahl | 80 | M16 | 25 | 160 | 35 | 13 | 8 | 125 | 10 | | | 26,05 € | | | B0372.3208016X150 | C | Edelstahl | 80 | M16 | 25 | 185 | 35 | 13 | 8 | 150 | 10 | | | 26,76 € | | | B0372.3208016X175 | C | Edelstahl | 80 | M16 | 25 | 210 | 35 | 13 | 8 | 175 | 10 | | | 27,78 € | | | B0372.3208020X75 | C | Edelstahl | 80 | M20 | 25 | 113 | 38 | 17 | 10 | 75 | 10 | | | 26,69 € | | | B0372.3208020X200 | C | Edelstahl | 80 | M20 | 25 | 238 | 38 | 17 | 10 | 200 | 10 | | | 32,64 € | | | B0372.3210020X150 | C | Edelstahl | 100 | M20 | 30 | 193 | 43 | 17 | 10 | 150 | 15 | | | 34,15 € | | | B0372.3212020X100 | C | Edelstahl | 120 | M20 | 32 | 143 | 43 | 17 | 10 | 100 | 30 | | | 45,07 € | | | B0372.3212020X150 | C | Edelstahl | 120 | M20 | 32 | 194 | 44 | 17 | 10 | 150 | 30 | | | 46,92 € | | | B0372.3212020X200 | C | Edelstahl | 120 | M20 | 32 | 244 | 44 | 17 | 10 | 200 | 30 | | | 49,25 € | | | B0372.3212024X100 | C | Edelstahl | 120 | M24 | 32 | 145 | 45 | 20 | 10 | 100 | 30 | | | 48,87 € | | | B0372.3212024X150 | C | Edelstahl | 120 | M24 | 32 | 195 | 45 | 20 | 10 | 150 | 30 | | | 52,15 € | | | B0372.3212024X200 | C | Edelstahl | 120 | M24 | 32 | 245 | 45 | 20 | 10 | 200 | 30 | | | 54,87 € | | | B0372.3212030X100 | C | Edelstahl | 120 | M30 | 32 | 147 | 47 | 26 | 10 | 100 | 30 | | | 53,66 € | | | B0372.3212030X150 | C | Edelstahl | 120 | M30 | 32 | 197 | 47 | 26 | 10 | 150 | 30 | | | 58,85 € | | | B0372.3212030X200 | C | Edelstahl | 120 | M30 | 32 | 247 | 47 | 26 | 10 | 200 | 30 | | | 63,35 € | |
|

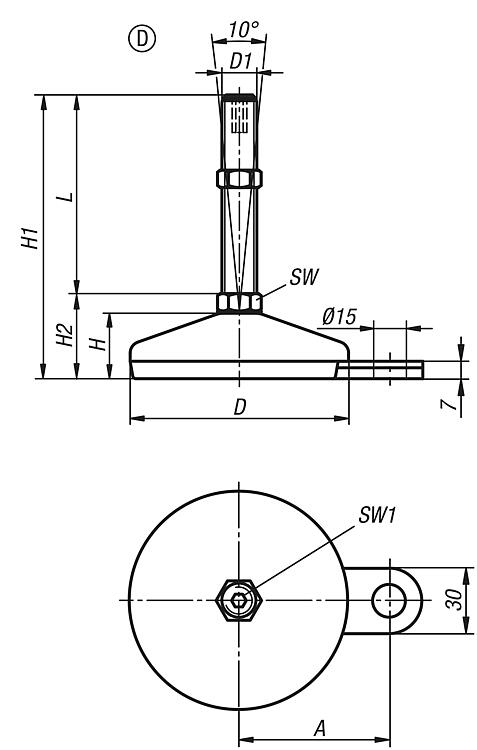

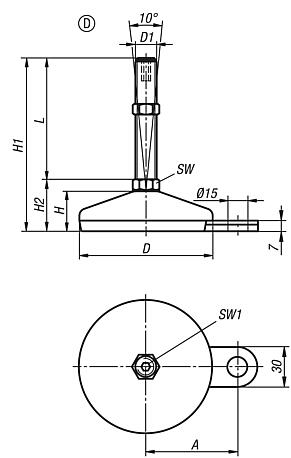

Stellfüße Stahl oder Edelstahl Form D |
mehr Info |
| Bestellnummer | Form | Material
Grundkörper | A | D | D1 | H | H1 | H2 | SW | SW1 | L | Belastbarkeit
max. kN (nur bei
statischer Belastung) | CAD | Zub. | Preis | Bestellen |
|---|
| B0372.4106010X50 | D | Stahl | 45 | 60 | M10 | 22 | 82 | 32 | 14 | 5 | 50 | 7 | | | 12,26 € | | | B0372.4106012X50 | D | Stahl | 45 | 60 | M12 | 22 | 82 | 32 | 14 | 6 | 50 | 7 | | | 12,26 € | | | B0372.4106012X100 | D | Stahl | 45 | 60 | M12 | 22 | 132 | 32 | 14 | 6 | 100 | 7 | | | 13,14 € | | | B0372.4106016X75 | D | Stahl | 45 | 60 | M16 | 22 | 108 | 33 | 16 | 8 | 75 | 7 | | | 14,12 € | | | B0372.4106016X100 | D | Stahl | 45 | 60 | M16 | 22 | 133 | 33 | 16 | 8 | 100 | 7 | | | 14,39 € | | | B0372.4106016X150 | D | Stahl | 45 | 60 | M16 | 22 | 183 | 33 | 16 | 8 | 150 | 7 | | | 15,70 € | | | B0372.4106016X200 | D | Stahl | 45 | 60 | M16 | 22 | 233 | 33 | 16 | 8 | 200 | 7 | | | 16,21 € | | | B0372.4206010X50 | D | Edelstahl | 45 | 60 | M10 | 22 | 82 | 32 | 14 | 5 | 50 | 7 | | | 15,56 € | | | B0372.4206012X50 | D | Edelstahl | 45 | 60 | M12 | 22 | 82 | 32 | 14 | 6 | 50 | 7 | | | 15,56 € | | | B0372.4206012X100 | D | Edelstahl | 45 | 60 | M12 | 22 | 132 | 32 | 14 | 6 | 100 | 7 | | | 16,61 € | | | B0372.4206016X75 | D | Edelstahl | 45 | 60 | M16 | 22 | 108 | 33 | 13 | 8 | 75 | 7 | | | 15,73 € | | | B0372.4206016X100 | D | Edelstahl | 45 | 60 | M16 | 22 | 133 | 33 | 13 | 8 | 100 | 7 | | | 16,19 € | | | B0372.4206016X150 | D | Edelstahl | 45 | 60 | M16 | 22 | 183 | 33 | 13 | 8 | 150 | 7 | | | 17,08 € | | | B0372.4206016X200 | D | Edelstahl | 45 | 60 | M16 | 22 | 233 | 33 | 13 | 8 | 200 | 7 | | | 19,17 € | |
|
